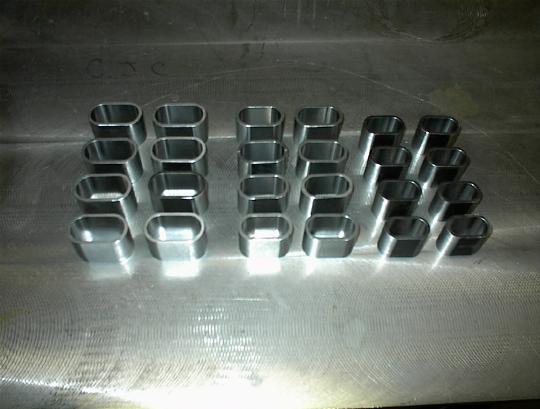

George wanted to match the wishbones to the axle, which we had already slotted.  So we had ovals made in three sizes, 1/8" thick with a highly polished finish on the inside for ease of chrome plating.

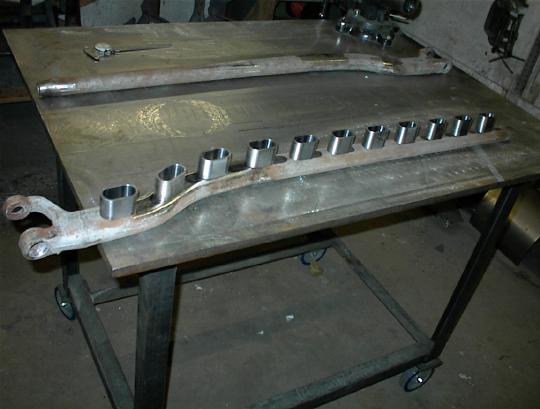

Here's the slots laid out on the wishbone.  We're looking for a nice spacing between the slots.

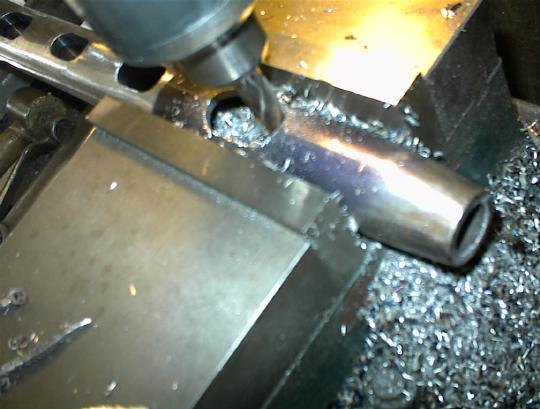

Next we needed to mill out the outside diameter of the oval in the wishbone.

Here's a before and after - should be a neat look.

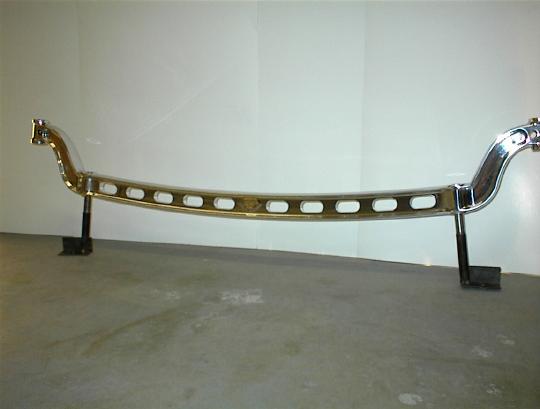

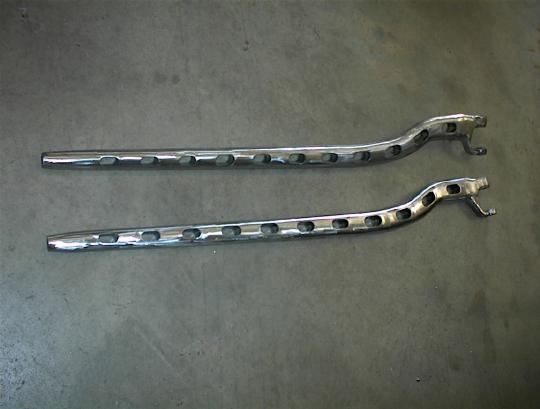

They're both done, and ready to be sent off to the plater.  The next shot shows the sloted axle - should make for a unique front end.
