Scroll down for more images or click on an image to return to gallery
We're using an aluminum shroud from Griffin Radiators.  We've used this shroud in many previous cars with a mechanical fan and have never had an overheating problem.







We're using a little shorter Walker radiator, so were going to have to shorten the shroud before cutting the hole.

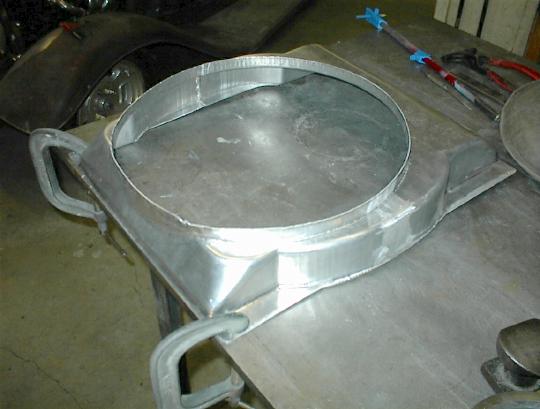

Once it was shortened and fit to the radiator, we cut the hole and formed a 3/4" lip.  We've also made sure we have 3/4" clearance to the fan.

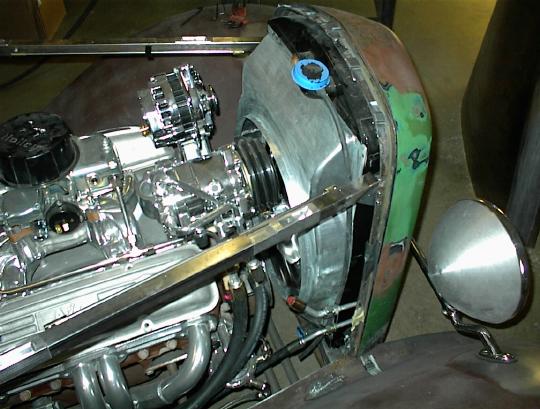

Here's the shroud mounted to the radiator.  We will paint it body color when complete.

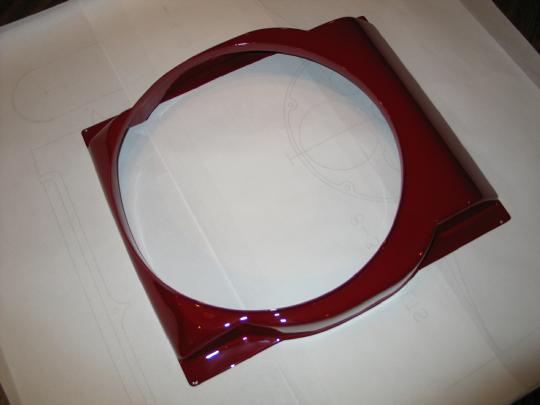

Here's a shot after all of  the bodywork, painting, sanding and buffing has been done.  It will really look nice attached to the radiator.
